| *读取点云数据
path:='./2020-01-14-16832.om3'
read_object_model_3d (path, 'm', [], [], ObjectModel3D, Status)

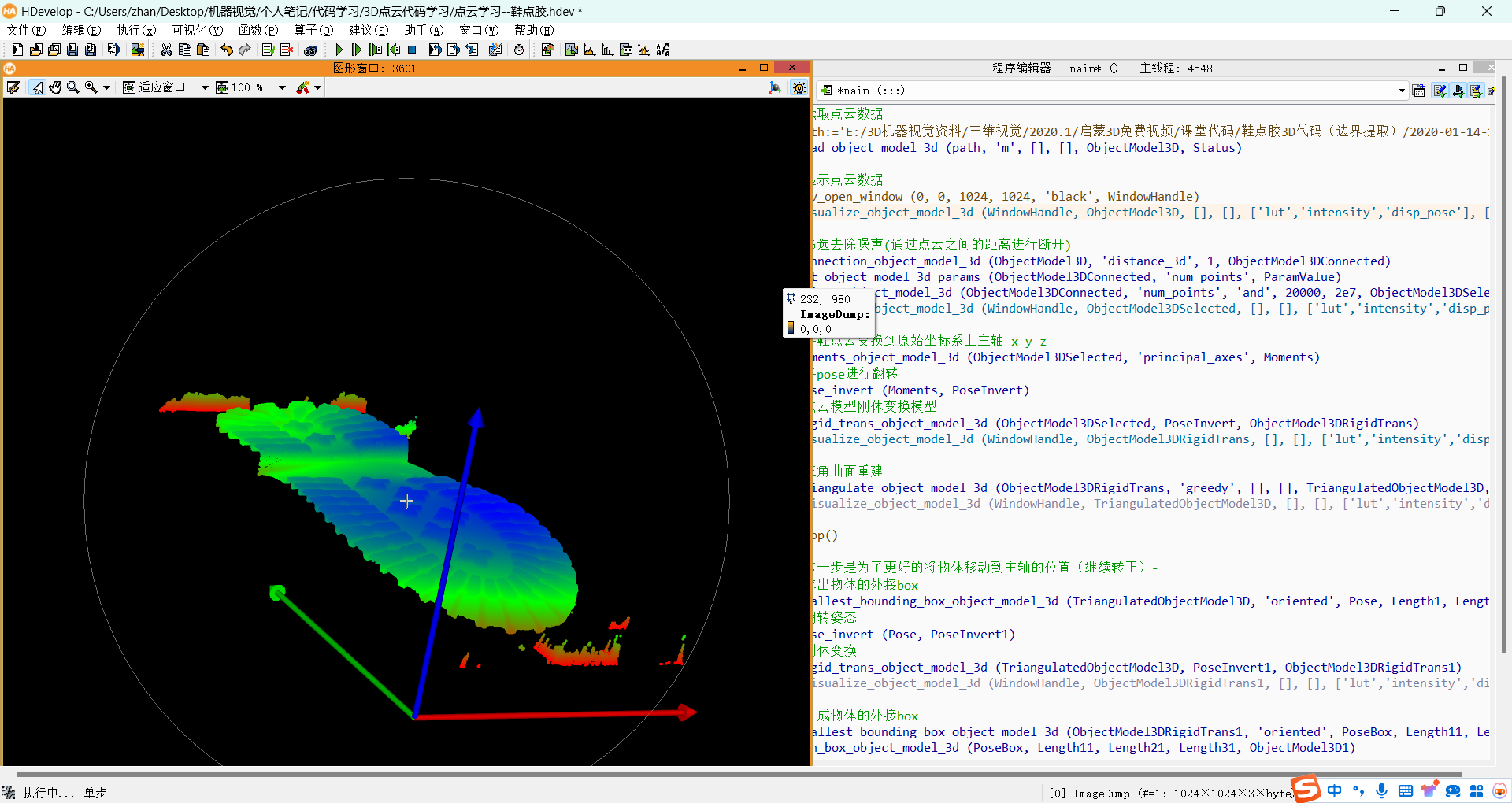

*显示点云数据
dev_open_window (0, 0, 512, 512, 'black', WindowHandle)
visualize_object_model_3d (WindowHandle, ObjectModel3D, [], [], ['lut','intensity','disp_pose'], ['color1','coord_z','true'], [], [], [], PoseOut)

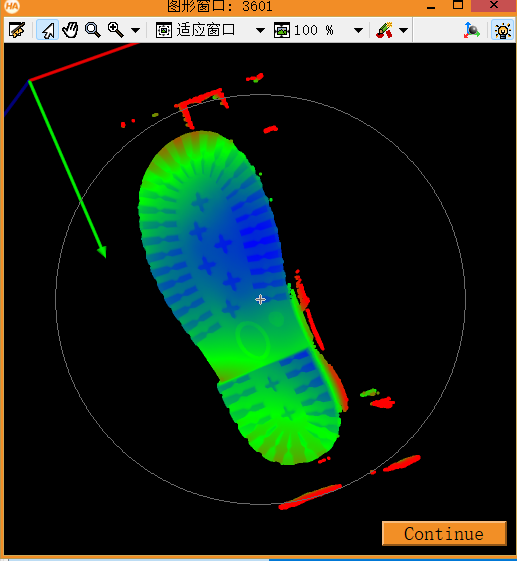

*筛选去除噪声(通过点云之间的距离进行断开)
connection_object_model_3d (ObjectModel3D, 'distance_3d', 1, ObjectModel3DConnected)
get_object_model_3d_params (ObjectModel3DConnected, 'num_points', ParamValue)
select_object_model_3d (ObjectModel3DConnected, 'num_points', 'and', 20000, 2e7, ObjectModel3DSelected)
visualize_object_model_3d (WindowHandle, ObjectModel3DSelected, [], [], ['lut','intensity','disp_pose'], ['color1','coord_z','true'], [], [], [], PoseOut)

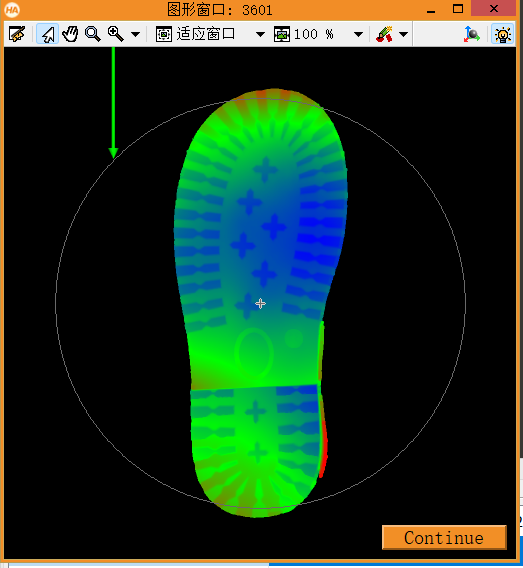

*将鞋点云变换到原始坐标系上主轴-x y z
moments_object_model_3d (ObjectModel3DSelected, 'principal_axes', Moments)
*将pose进行翻转
pose_invert (Moments, PoseInvert)
*点云模型刚体变换模型
rigid_trans_object_model_3d (ObjectModel3DSelected, PoseInvert, ObjectModel3DRigidTrans)
visualize_object_model_3d (WindowHandle, ObjectModel3DRigidTrans, [], [], ['lut','intensity','disp_pose'], ['color1','coord_z','true'], [], [], [], PoseOut)

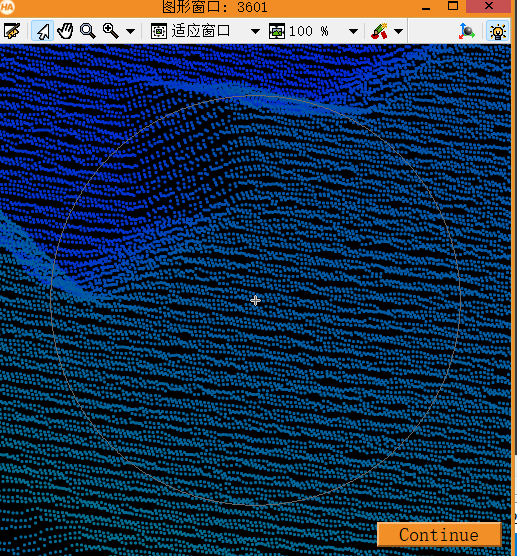

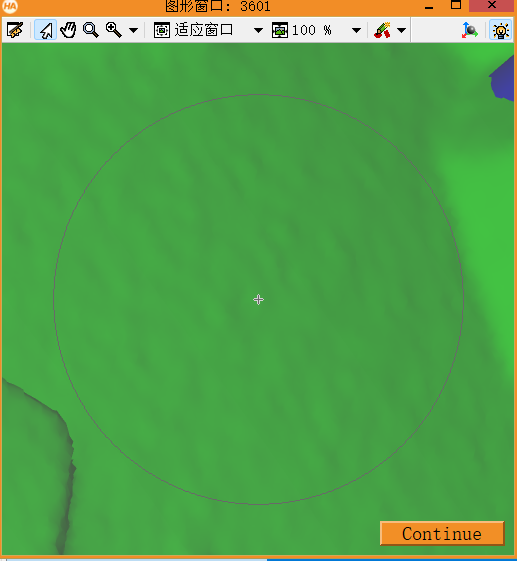

*三角曲面重建
triangulate_object_model_3d (ObjectModel3DRigidTrans, 'greedy', [], [], TriangulatedObjectModel3D, Information)
*visualize_object_model_3d (WindowHandle, TriangulatedObjectModel3D, [], [], ['lut','intensity','disp_pose'], ['color1','coord_z','true'], [], [], [], PoseOut)
stop()
*这一步是为了更好的将物体移动到主轴的位置（继续转正）-
*求出物体的外接box
smallest_bounding_box_object_model_3d (TriangulatedObjectModel3D, 'oriented', Pose, Length1, Length2, Length3)
*翻转姿态
pose_invert (Pose, PoseInvert1)
*刚体变换
rigid_trans_object_model_3d (TriangulatedObjectModel3D, PoseInvert1, ObjectModel3DRigidTrans1)
*visualize_object_model_3d (WindowHandle, ObjectModel3DRigidTrans1, [], [], ['lut','intensity','disp_pose'], ['color1','coord_z','true'], [], [], [], PoseOut)
*生成物体的外接box
smallest_bounding_box_object_model_3d (ObjectModel3DRigidTrans1, 'oriented', PoseBox, Length11, Length21, Length31)
gen_box_object_model_3d (PoseBox, Length11, Length21, Length31, ObjectModel3D1)

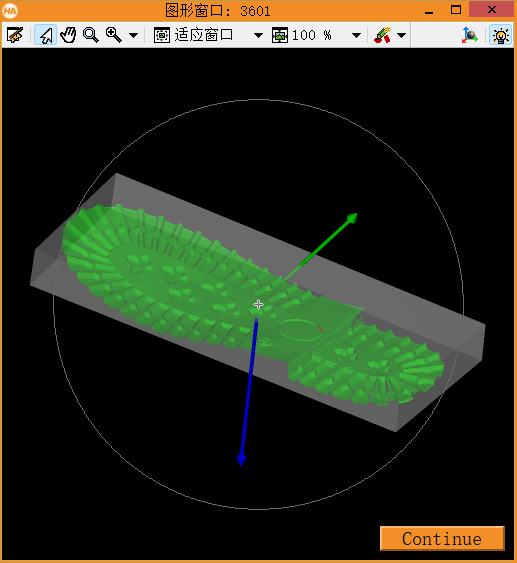

*将物体和box一起显示(显示的时候 加'_0'代表第一个Object 加'_1'代表第二个Object)
visualize_object_model_3d (WindowHandle, [ObjectModel3DRigidTrans1,ObjectModel3D1], [], [], ['color_0','color_1','alpha_1','disp_pose'], ['green','gray',0.5,'true'], [], [], [], PoseOut)
objectsOut:=[]
Index_S:=[]
Index_E:=[]
color_S:=[]
color_E:=[]
colorsOut:=[]
colorvaluesOut:=[]
all_x:=[]
all_y:=[]
*做切平面与鞋子的点云相交
for index:=0 to 45 by 1
cutplanePose := PoseBox
cutplanePose[0]:=PoseBox[0] - Length11/2 + (index)*4+3
cutplanePose[3]:=0
cutplanePose[4]:=90
cutplanePose[5]:=0
*产生平面
gen_plane_object_model_3d (cutplanePose, [-1,-1,1,1]* 90, [-1,1,1,-1] * 90, GenPlane)
*visualize_object_model_3d (WindowHandle, [ObjectModel3DRigidTrans1,GenPlane], [], [], ['color_0','color_1','alpha_1','disp_pose'], ['green','gray',0.5,'true'], [], [], [], PoseOut)
*求交线
intersect_plane_object_model_3d (ObjectModel3DRigidTrans1, cutplanePose, ObjectModel3DIntersection)
*visualize_object_model_3d (WindowHandle, ObjectModel3DIntersection, [], [], ['lut','intensity','disp_pose'], ['color1','coord_z','true'], [], [], [], PoseOut)
*变换到二维xld
*翻转姿态
pose_invert (cutplanePose, poseInvert)
*确认投影平面在前面
*获得box外接主轴的直径
get_object_model_3d_params (ObjectModel3DIntersection, 'diameter_axis_aligned_bounding_box', Diameter)
poseInvert[2]:=poseInvert[2]+Diameter
*用平行于投影平面的相机（1:1的比例）
Scale:=1
CamParam := [0,0,1.0/Scale, 1.0/Scale, 0, 0, 500,500]
project_object_model_3d (ModelContours, ObjectModel3DIntersection, CamParam, poseInvert, 'data', 'lines')
count_obj(ModelContours,Number)
Rows:=[]
Columns:=[]
Row:=[]
Column:=[]
for I:=1 to Number by 1
select_obj (ModelContours, EdgeContour, I)
get_contour_xld(EdgeContour, Row,Column)
Rows:=[Rows,Row]
Columns:=[Columns,Column]
endfor
*从上到下依次进行排序
tuple_sort_index (Rows, Indices)
tuple_length(Rows,Length)
OrderRow:=[]
OrderColumn:=[]
if(Length>=1)
for Row_Index:=0 to Length-1 by 1
OrderRow:=[OrderRow,Rows[Indices[Row_Index]]]
OrderColumn:=[OrderColumn,Columns[[Row_Index]]]
endfor
endif
*求最大和最小点（行方向）
tuple_sort_index (OrderRow, Indices)
tuple_length(OrderRow,Length)
*起点（xld）
StartRow:=OrderRow[Indices[0]]
StartColumn:=OrderColumn[Indices[0]]
*终点（xld）
EndRow:=OrderRow[Indices[Length-1]]
EndColumn:=OrderColumn[Indices[Length-1]]
*在起点和终点位置生成 x 图标
gen_cross_contour_xld(StartXP, StartRow, StartColumn, 6, 0.795296)
gen_cross_contour_xld(EndXP, EndRow,EndColumn, 6, 0.795296)
dev_display(ModelContours)
*转换成点云坐标
StartPose:=[cutplanePose[0],StartRow,-StartColumn, 0,0,0,0]
EndPose :=[cutplanePose[0],EndRow,-EndColumn, 0,0,0,0]
*生成球体的点云
gen_sphere_object_model_3d (StartPose, 2, StartPoint)
gen_sphere_object_model_3d (EndPose , 2, EndPoint )
*所有对点的边界点集合
objectsOut := [objectsOut,StartPoint]
objectsOut := [objectsOut,EndPoint ]
*显示时的颜色
Index_S:= 0+index*2
Index_E:= 0+index*2+1
color_S:='color_'+Index_S
color_E:='color_'+Index_E
colorsOut := [colorsOut,color_S]
colorsOut := [colorsOut,color_E]
colorvaluesOut := [colorvaluesOut,'blue']
colorvaluesOut := [colorvaluesOut,'blue']
all_x:=[all_x,cutplanePose[0]]
all_y:=[all_y,StartRow]
all_x:=[all_x,cutplanePose[0]]
all_y:=[all_y,EndRow]
endfor

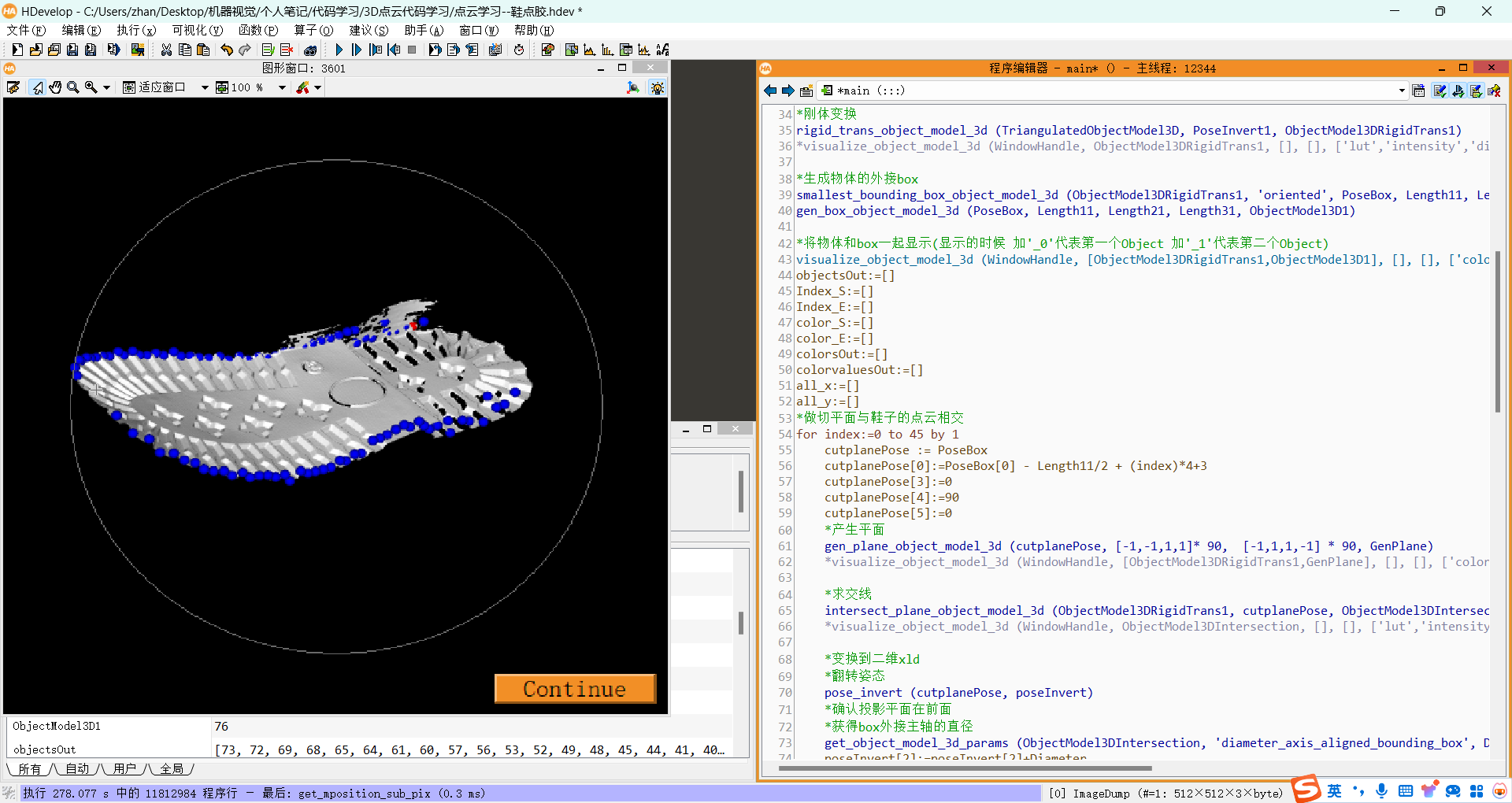

*显示外边界模型点云
visualize_object_model_3d (WindowHandle,[objectsOut,ObjectModel3DRigidTrans1], [],[],[colorsOut,'color_88'],[colorvaluesOut,'red'], [], '', [], Pose)
*2二维显示
dev_open_window (0, 0, 512, 512, 'black', WindowHandle1)
dev_set_color('red')
gen_cross_contour_xld(Start,all_x,all_y, 3, 0.885398)
|
